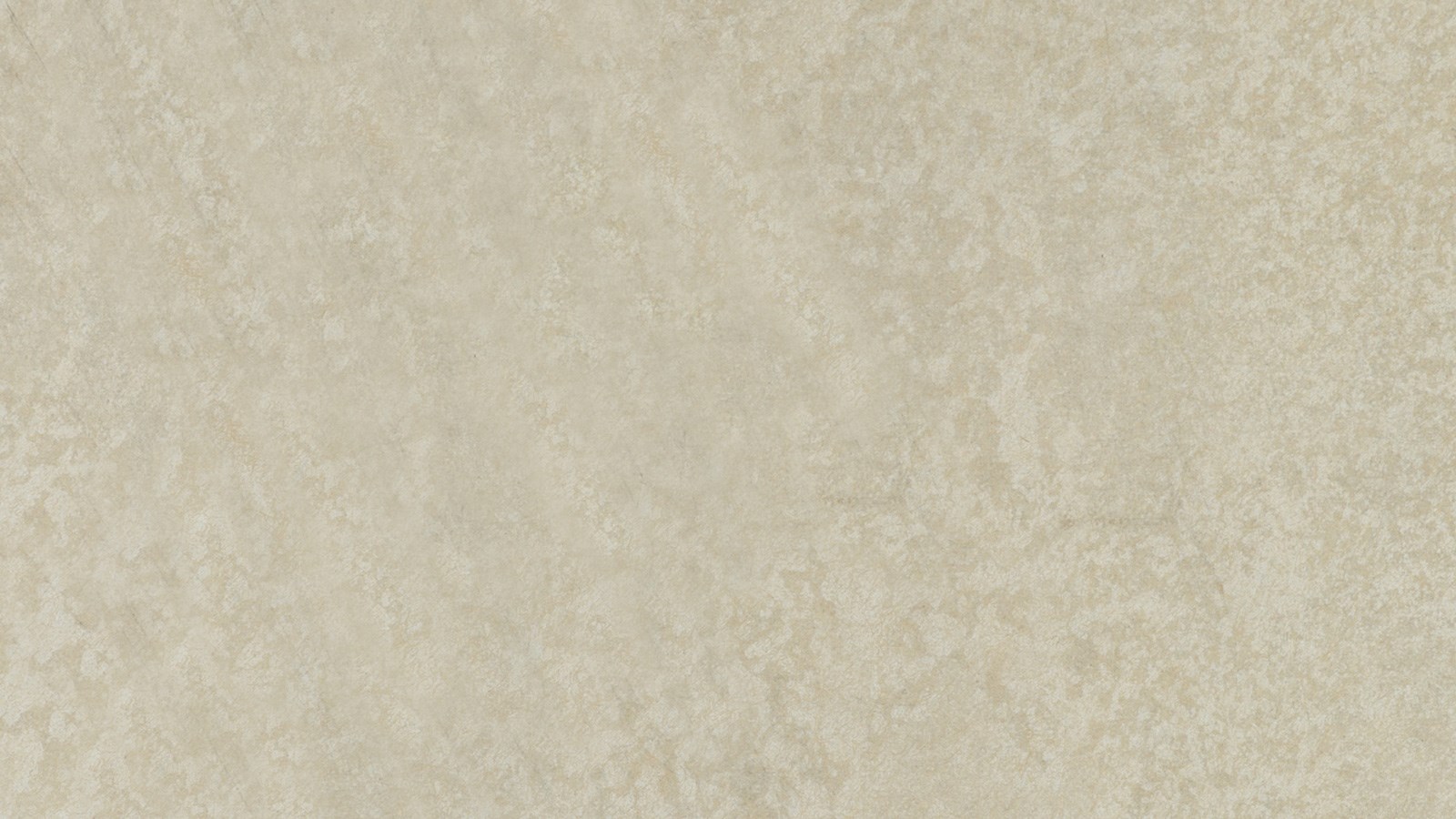

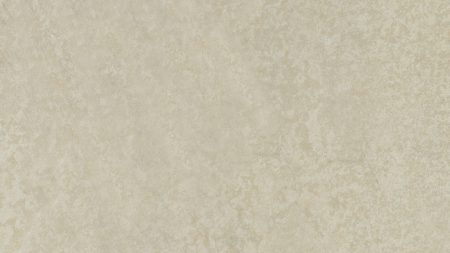

Compressed Sheet
The strongest of them all, Cemintel Compressed Sheet is tried and tested for long term strength.
Designed for use in tough conditions, including partitions and noise barriers, these panels have good acoustic properties and maximum impact resistance for a fibre cement product. The comprehensive range consists of multiple thicknesses, widths and lengths.
Category: Flooring & Decking
Store availability: Cabramatta, Katoomba
Online Enquiry
Features
- Tried and tested for long term strength
- Designed for use in tough conditions, including partitions and noise barriers
- Good acoustic properties and maximum impact resistance
- Comprehensive range of multiple thicknesses, widths and lengths
APPLICATIONS
| Result | |
|---|---|
| Applications | Flooring & Decking |
| Type of Building Structure | Residential Housing Buildings within the scope of AS4055, Commercial & Other (Limited loadings – refer to Design & Installation Guide) |
| Wet Areas | Yes |
PANEL – DIMENSIONAL & GEOMETRICAL CHARACTERISTICS
| Dimensional/Geometrical Characteristic | Specification | Manufacturing Tolerance | Relevant Standard |
|---|---|---|---|
| Panel Dimensions | 1200mmW x 2400L x 6mmD 1200mmW x 2400mmL x 12mmD 1200mmW x 3000mmL x 12mmD 900mmW x 1800mmL x 15mmD 900mmW x 2100mmL x 15mmD 900mmW x 2400mmL x 15mmD 900mmW x 2700mmL x 15mmD 900mmW x 3000mmL x 15mmD 1200mmW x 1800mmL x 15mmD 1200mmW x 2100mmL x 15mmD 1200mmW x 2400mmL x 15mmD 1200mmW x 2700mmL x 15mmD 1200mmW x 3000mmL x 15mmD 900mmW x 2400mmL x 18mmD 900mmW x 3000mmL x 18mmD 1200mmW x 1800mmL x 18mmD 1200mmW x 2400mmL x 18mmD 1200mmW x 3000mmL x 18mmD 1200mmW x 2400mmL x 24mmD |
Width +0 -3 mm Length +0 -3 mm Thickness +10% -0% |
|
| Profile | Square Edge | ||
| Perpendicularity/squareness of edges | 1mm/linear meter | ||
| Weight (typical) | 6mm = 11.9kg/m2, 12mm = 23.4kg/m2, 15mm = 29.25kg/m2, 18mm = 35.1kg/m2 | ||
| Layout Options | N/A | ||
| Jointing | Butt Jointed, Sealant |
PANEL – STRENGTH & MOISTURE RELATED PROPERTIES
| Physical Property | Result | Relevant Standard |
|---|---|---|
| Modulus of Rupture (Wet) | >18MPa | AS2908.2 |
| Modulus of Elasticity (Wet) | 9-13GPa | AS2908.2 |
| Density (Oven Dry) | 1625 kg/m3 | AS2908.2 |
| Water Vapor Diffusion | Not Required | Not Required |
| Water Tightness (24hrs) | No water droplet | AS2908.2 |
| Water Absorption (Saturated – 48hrs) | 18 wt% | ASTM C 1186 |
| Moisture Content (EMC) | 7 Wt % | ASTM C 1186 |
| Moisture Movement | 0.039% | ASTM C 1186 |
PANEL – OTHER DURABILITY/WEATHER RESISTANCE INDICATORS
| Test | Result | Relevant Standard |
|---|---|---|
| Heat Rain | PASSED (25 Cycles) | AS2908.2 |
| Freeze Thaw | PASSED (50 Cycles) | AS2908.2 |
| Warm Water Resistance | PASSED (56 days) | AS2908.2 |
| Soak Dry | PASSED (25 Cycles) | AS2908.2 |
PANEL – FINISH CHARACTERISTICS
| Characteristic | Result | Relevant Standard |
|---|---|---|
| Finish | Unprimed | |
| Coating Type | ||
| Colour Bodied | No | |
| Paint Type | ||
| UV Resistance | N/A | N/A |
| Formaldehyde Emission Rate | N/A | N/A |
| VOC Emission Rate | N/A | N/A |
| Spectral Reflectivity Values | Solar Reflectance % | Solar Absorption % | Basix Colour | Relevant Standard |
|---|---|---|---|---|
| Compressed Sheet | N/A |
PANEL – FIRE RESISTANCE, THERMAL & ACCOUSTIC PROPERTIES
| Characteristic | Result | Relevant Standard |
|---|---|---|
| FIRE RESISTANCE | ||
| Combustibility | Suitable for use in applications where non-combustible materials are specified by the Deemed to Satisfy Provisions of the 2016 BCA Vol 1 Amendment 1 Clause C1.9 (2015 BCA Vol Clause C1.12) | |
| Fire Hazard Properties | Group 1 Av Specific Extinction Area <250 | AS/NZ 3837 |
| Classification | 1 | AS/NZ 3837 |
| Surface Burning Characteristics | Ignitability =0, Flame Propagation =0, Heat Release =0, Smoke Release=1 | AS1530.3 |
| THERMAL CONDUCTIVITY | ||
| Thermal Conductivity (λ -Factor) | ≈ 0.4108 W/m.K. | |
| Thermal Expansion Co-efficient | 0.005-0.01mm/mK | N/A |
| ACOUSTIC VALUE | ||
| Sound reduction (depends on construction) | N/A | N/A |
SYSTEM SOLUTIONS
| Characteristic | Result | Relevant Standard |
|---|---|---|
| Within Scope of AS4055? | Yes | |
| Wind Loading – Residential housing buildings within the scope of AS4055 | N/A | |
| Weatherproofing | N/A | N/A |
| Cyclonic Conditions | N/A | N/A |
| Fire Resistance Limits (FRLs) | Up to 120/120/120 & -/180/180 | Refer to Gyprock® The Red Book™ |
| Bushfire Construction | BAL 40 (Construction for Bushfire Attack Level 40 for an external wall) | AS 3959-8 |
| Acoustic | Acoustic solutions of up to RW/RW+CTR 56/47 are detailed |
Refer to Gyprock® The Red Book™ |
| Thermal | Thermal solutions of up to RT(sum)/RT(win) 3.5/3.8 are detailed |
Refer to Gyprock® The Red Book™ |
FIXING
| Characteristic | |
|---|---|
| Maximum Span (Stud Spacing) | Up to 450mm (15mm). Up to 600mm (18mm). |
| DIRECT FIX | |
| Nail to Timber Frame | No |
| Screw to Timber Frame | Yes |
| Screw to Steel Frame | Yes |
| INDIRECT FIX | |
| Timber Frame | No |
| Steel Frame | No |
| Masonry Frame | No |
| EXPOSED FASTENERS | |
| Screw | No |
| Rivet | No |
| Nail | No |
| CONCEALED FASTENERS | |
| Clip | No |
| Countersunk Screw/Nail | Yes |
| Adhesive, Split Batten, etc. | Yes |
| Hidden by Overlapping Panel | No |
| Flush Jointed (Taped) | No |
WARRANTY 25 Years
