Endeavour

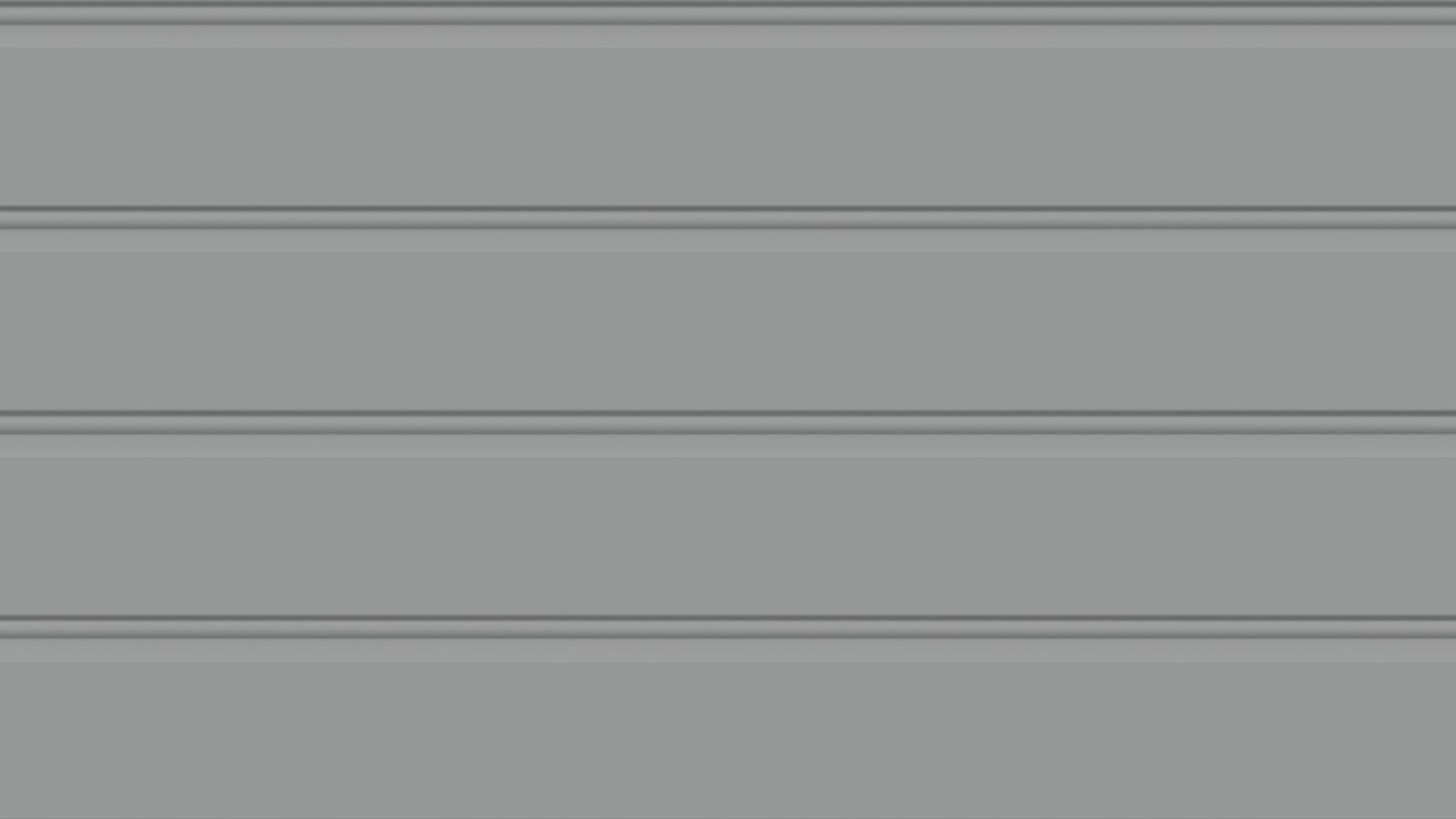

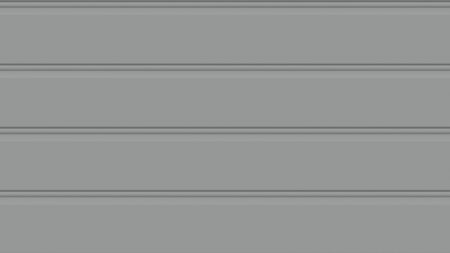

Cemintel Endeavour® Weatherboard has a traditional look that creates a linear, flat profile with a slight beveled detail.
This pre-primed weatherboard is double width, which provides a faster installation. It has an overlap that conceals fixings, giving the final paint finish a smooth appearance.
Category: Facades & Cladding
Store availability: Cabramatta, Katoomba
Online Enquiry
Features
- Traditional look that creates a linear, flat profile with a slight beveled detail
- Pre-primed and double width, which provides a faster installation
- Overlap that conceals fixings gives the final paint finish a smooth appearance
APPLICATIONS
| Result | |
| Applications | Façades & Cladding |
| Type of Building Structure | Residential Housing Buildings within the scope of AS4055 |
| Wet Areas | No |
PANEL – DIMENSIONAL & GEOMETRICAL CHARACTERISTICS
| Dimensional/Geometrical Characteristic | Specification | Manufacturing Tolerance | Relevant Standard |
| Panel Width | 295mm | +1 -0 mm | |
| Panel Length | 4200mm | -0 -3 mm | |
| Panel Thickness | 10mm | +0.5 -0 mm | |
| Profile | Shiplap | ||
| Perpendicularity/squareness of edges | 1mm/linear meter | ||
| Weight (typical) | 16.2kg/m2 | ||
| Layout Options | Horizontal | ||
| Jointing | Concealed |
PANEL – STRENGTH & MOISTURE RELATED PROPERTIES
| Physical Property | Result | Relevant Standard |
| Modulus of Rupture (Wet) | > 9 MPa | AS2908.2 |
| Modulus of Elasticity (Wet) | 3-5 GPa | AS2908.2 |
| Density (Oven Dry) | 1350 kg/m3 | AS2908.2 |
| Water Vapor Diffusion | Not Required | Not Required |
| Water Tightness (24hrs) | No water droplet | AS2908.2 |
| Water Absorption (Saturated – 48hrs) | 30 wt% | ASTM C 1186 |
| Moisture Content (EMC) | 7 wt% | ASTM C 1186 |
| Moisture Movement | 0.062% | ASTM C 1186 |
PANEL – OTHER DURABILITY/WEATHER RESISTANCE INDICATORS
| Test | Result | Relevant Standard |
| Heat Rain | PASSED (25 Cycles) | AS2908.2 |
| Freeze Thaw | PASSED (50 Cycles) | AS2908.2 |
| Warm Water Resistance | PASSED (56 days) | AS2908.2 |
| Soak Dry | PASSED (25 Cycles) | AS2908.2 |
PANEL – FINISH CHARACTERISTICS
| Characteristic | Result | Relevant Standard |
| Finish | Preprimed | |
| Coating Type | Sealer Type: Clear Sealer On Face | |
| Colour Bodied | No | |
| Paint Type | ||
| UV Resistance | N/A | N/A |
| Formaldehyde Emission Rate | N/A | N/A |
| VOC Emission Rate | N/A | N/A |
| Spectral Reflectivity Values | Solar Reflectance % | Solar Absorption % | Basix Colour | Relevant Standard |
| Endeavour® Weatherboards | N/A |
PANEL – FIRE RESISTANCE, THERMAL & ACCOUSTIC PROPERTIES
| Characteristic | Result | Relevant Standard |
| FIRE RESISTANCE | ||
| Combustibility | Suitable for use in applications where non-combustible materials are specified by the Deemed to Satisfy Provisions of the 2016 BCA Vol 1 Amendment 1 Clause C1.9 (2015 BCA Vol Clause C1.12) | |
| Fire Hazard Properties | Group 1 Av Specific Extinction Area <250 | AS/NZ 3837 |
| Classification | 1 | AS/NZ 3837 |
| Surface Burning Characteristics | Ignitability =0, Flame Propagation =0, Heat Release =0, Smoke Release=1 | AS1530.3 |
| THERMAL CONDUCTIVITY | ||
| Thermal Conductivity (λ-Factor) | ≈ 0.2704 W/m.K | |
| Thermal Expansion Co-efficient | 0.005-0.01mm/mK | N/A |
| ACOUSTIC VALUE | ||
| Sound reduction (depends on construction) | N/A | N/A |
SYSTEM SOLUTIONS
| Characteristic | Result | Relevant Standard |
| Within Scope of AS4055? | Yes | |
| Wind Loading – Residential housing buildings within the scope of AS4055 | N1, N2, N3, N4, N5, C1, C2, C3 | |
| Weatherproofing | Suitable for all building classes as set out in the BCA (ie 1&10, 2-9) | N/A |
| Cyclonic Conditions | N/A | N/A |
| Fire Resistance Limits (FRLs) | Up to 90/90/90 | Refer to Gyprock® The Red Book™ |
| Bushfire Construction | BAL 29 (Construction for Bushfire Attack Level 29 for an external wall) | AS 3959-8 |
| Acoustic | Acoustic solutions of up to RW/RW+CTR 50/42 are detailed | Refer to Gyprock® The Red Book™ |
| Thermal | Thermal solutions of up to RT(sum)/RT(win) 3.4/3.8 are detailed | Refer to Gyprock® The Red Book™ |
FIXING
| Characteristic | |
| Maximum Span (Stud Spacing) | Up to 600mm |
| DIRECT FIX | |
| Nail to Timber Frame | Yes |
| Screw to Timber Frame | No |
| Screw to Steel Frame | Yes |
| INDIRECT FIX | |
| Timber Frame | Yes |
| Steel Frame | No |
| Masonry Frame | No |
| EXPOSED FASTENERS | |
| Screw | No |
| Rivet | No |
| Nail | No |
| CONCEALED FASTENERS | |
| Clip | No |
| Countersunk Screw/Nail | No |
| Adhesive, Split Batten, etc. | No |
| Hidden by Overlapping Panel | Yes |
| Flush Jointed (Taped) | No |
WARRANTY
25 Years
