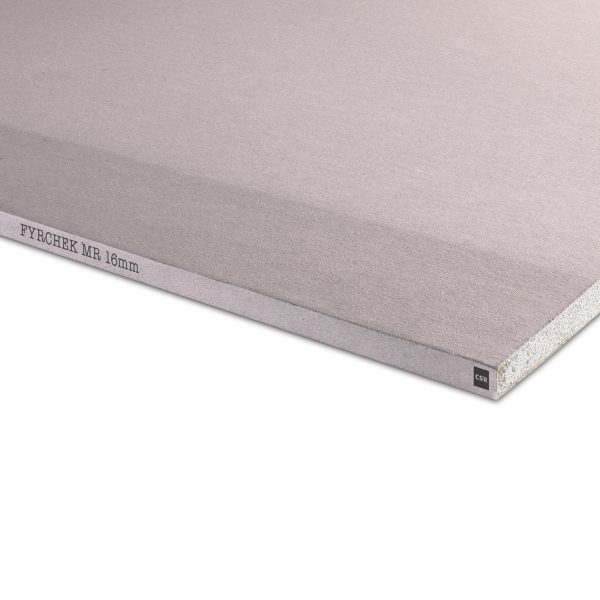

FYRCHEK™ MR
Gyprock Fyrchek MR combines a fire and acoustic grade board with additional moisture resistance to create the ideal lining for fire rated wall and ceiling systems in wet areas.
Typical Applications
Fyrchek MR is predominantly specified for commercial installations in areas where there is a higher level of fire and moisture resistance.
It is primarily intended for walls and ceilings in wet area rooms, soffits and external eaves that must achieve fire resistance.
More information about fire and wet area solutions can be found under the Solutions tab.
Fyrchek MR’s glass fibre-reinforced core enables it to maintain structural integrity when subjected to direct flame. The additional moisture resistant properties make it an ideal board for use as part of a fire rated wall or ceiling system in wet areas or application subjected to high humidity.
This plasterboard is also an acoustic grade board and can be used in systems where acoustic separation is specified.
Gyprock Fyrchek MR can be easily identified by its blue coloured face paper.
Available Edge Profiles
Gyprock Fyrchek MR is available with a recessed edge (RE) profile – both long edges of the board feature a recess that tapers approximately 60mm in from the edge. This is the standard choice of profile for flush jointed systems.
Tested Fire Performance
Gyprock fire rated plasterboard products are manufactured with special additives to enhance their fire resistance properties. The additives slow the progress of heat and flame, and when used as part of a CSR fire rated system, provide performance options suitable for many construction types.
CSR provides a range of wall and ceiling systems, junction and penetration details, which meet and exceed the requirements of the Building Code of Australia. These solutions often include a combination of plasterboard, insulation, sealants and accessories to reach various performance criteria.
Product Options
Gyprock Fyrchek MR is available in the following sizes:
| Thickness | 13mm 16mm |
| Widths | 1200mm |
| Lengths | 2700mm 3000mm 3600mm |
| Edge Profiles | Recessed Edge for regular jointing |
Stockholdings may vary. For product availability and to place an order, contact your nearest supplier.
Product Manufacture
Gyprock Fyrchek MR is manufactured by CSR Gyprock in Australia to stringent product specifications.
Product Handling
Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.
Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.
Health and Safety
Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.
Manufacturing Tolerances
| Nominal Thickness | 13mm and 16mm ± 0.5mm |
| Nominal Widths | 1200mm ± 3mm |
| Nominal Lengths | From 2700 to 3600 ± 5mm, typically in 300mm increments |
| Squareness | Cut ends ± 3mm in the width of the board |
Physical Properties
| 13mm | 16mm | |
| Nominal Board Weight* | 10.8kg/m2 | 12.9kg/m2 |
| Thermal Performance: R-Value |
0.05 – 0.07 m2K/W | 0.07 – 0.09 m2K/W |
| Fire Hazard: assessed to AS/NZS3837 cone calorimeter test | Average Specific Extinction Area (ASEA) <250m2/kg Group Number 1 Report Reference WFRA 45759 |
|
| Combustibility | In accordance with BCA Clause C1.12, Gyprock Fyrchek MR may be used wherever a non-combustible material is required by the Code. | |
| Total Recycled Content | 9.3% | 8.4% |
*Subject to reasonable manufacturing variance.
Resources
Gyprock makes available resources that provide comprehensive selection, design, installation and maintenance guidance.
