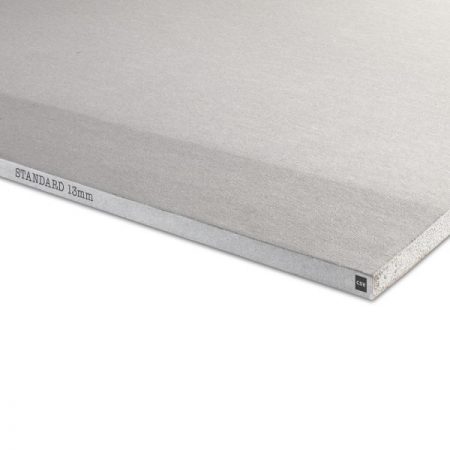

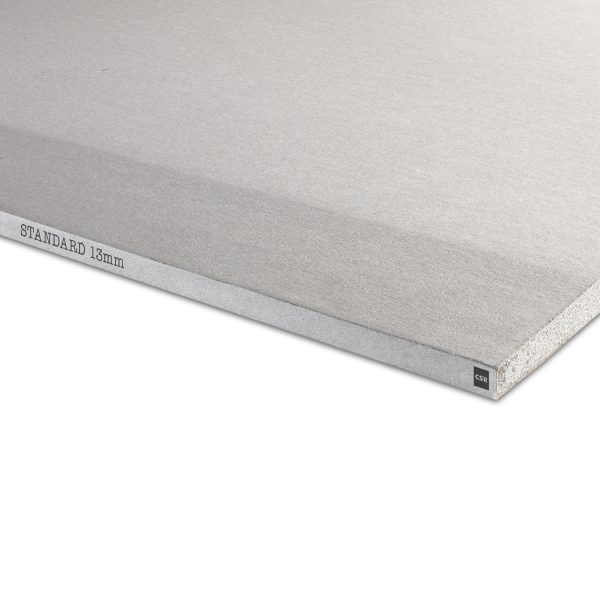

Standard 13mm
This board sets the Standard for commercial applications. Gyprock Standard 13mm works as a general internal wall and ceiling lining in a huge range of commercial applications.
Typical Applications
Gyprock Standard 13mm is typically used as a wall and ceiling lining option in commercial applications including non-fire or acoustic rated walls and partitions.
Gyprock Standard 13mm is manufactured in Australia to meet and exceed the requirements of Australian Standard AS/NZS 2588.
The go-to for commercial construction, Gyprock Standard 13mm can also be used residential to deliver a more robust, acoustically sound lining.
Product Options
Gyprock Standard 13mm is available in the following sizes:
| Thickness | 13mm |
| Widths | 1200mm 1350mm |
| Lengths | 2400mm 2700mm 3000mm 3600mm 4200mm 4800mm 6000mm |
| Edge Profiles | Recessed Edge for regular jointing Recessed Edge/Square Edge for low profile architectural mouldings Square Edge for applications not requiring jointing |
Product Manufacture
Gyprock Standard 13mm is manufactured by CSR Gyprock in Australia to stringent product specifications.
Product Handling
Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.
Health and Safety
Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.
Manufacturing Tolerances
| Nominal Thickness | 13mm ± 0.5mm |
| Nominal Widths | 1200, and 1350mm ± 3mm |
| Nominal Lengths | From 2400 to 6000mm ± 5mm, typically in 300mm increments |
| Squareness | Cut ends ± 3mm in the width of the board |
Physical Properties
| Nominal Board Weight* | 8.5kg/m2 |
| Thermal Performance: R-Value |
0.05 – 0.07 m2K/W |
| Fire Hazard: assessed to AS/NZS3837 cone calorimeter test | Average Specific Extinction Area (ASEA) <250m2/kg Group Number 1 Report Reference WFRA 45759 |
| Combustibility | In accordance with BCA Clause C1.12, Gyprock Standard 13mm may be used wherever a non-combustible material is required by the Code. |
| Total Recycled Content | 3.7% |
*Subject to reasonable manufacturing variance.
Installation Guidance
Install to manufacturer’s recommendations as outlined in the relevant Installation Guide.
Resources
Gyprock makes available resources that provide comprehensive selection, design, installation and maintenance guidance.
