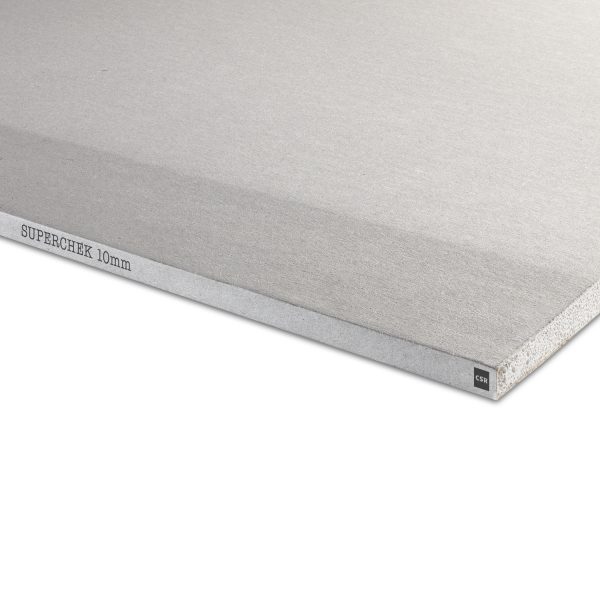

SUPERCHEK™
The ultimate lining for homes, Superchek is the highest specification plasterboard in Gyprock’s residential range. Its high recycled content increases density and board strength to deliver exceptional impact resistance and noise control.
Typical Applications
Gyprock Superchek is ideal for use in residential walls and ceilings particularly in those areas subject to high traffic and high spirits such as; corridors, hallways, rumpus and games rooms, mud rooms and childen’s bedrooms. When installed in ceilings of multi-storey homes, Superchek can also reduce noise levels between floors.
Gyprock Superchek is not suitable where it would be in contact with water or a constant relative humidity above 90%.
Gyprock Superchek features a specially formulated dense core and tougher face paper to substantially increase its resistance to soft and hard body impact.
While Gyprock Plus provides everyday durability, Superchek has enhanced resistance to dents, scuffs and scrapes from things such as furniture and school bags.
Superchek also provides improved airborne noise and impact noise insulation for a quieter, more comfortable home. Walls lined with Superchek provide a 15% reduction in perceived loudness compared to standard plasterboard.
Tested Impact Performance
Gyprock impact resistant plasterboard products are manufactured with a heavier lining paper, and special additives to enhance the durability of their core. Typically, these products can withstand twice the discernible force of regular plasterboard products, making them ideal for high traffic areas.
Hard body impact
Hard body impact is assessed by dropping a 50mm steel ball onto the plasterboard surface from increasing heights.
Soft body impact
Soft body impact testing sees a weighted bag swung on a pendulum, striking the plasterboard surface.
Superior Acoustic Performance
Gyprock acoustic plasterboard products fall into two categories – those for preventing sound transmission, and those designed to provide sound absorption. Sound transmission products are manufactured with a denser core, providing a physical barrier to prevent sound moving to adjoining spaces. Absorptive plasterboard products feature perforations to help reduce echo and improve acoustics within a room.
While the selection of an acoustic plasterboard lining alone will improve performance, CSR provides a range of wall and ceiling systems which deliver superior results for transmission or absorption, through a combination of plasterboard, insulation, fixing methods, plenums and framing configuration.
Product Options
Gyprock Superchek is available in the following sizes:
| Thickness | 10mm | |
| Size | 4.2 x 1350 3.6 x 1350 4.2 x 1200 |
|
| Widths | 1200mm | 1350mm |
| Lengths | 4200mm | 3600mm 4200mm |
Stockholdings may vary. For product availability and to place an order, contact your nearest supplier.
Product Manufacture
Gyprock Superchek is manufactured by CSR Gyprock in Australia to stringent product specifications.
Product Handling
Transportation and manual handling: Refer to the Gypsum Board Manufacturers of Australia (GBMA) website for recommended OH&S practices.
Storage: Protect plasterboard and cornice from weather and moisture. Avoid products sagging by storing horizontally, supported on a level platform or full-width support members spaced at max. 600mm centres.
Health and Safety
Safety Data Sheets are important documents in the construction industry and assist in the continuing focus on occupational health and safety on and off sites.
Manufacturing Tolerances
| Nominal Thickness | 10mm ± 0.4mm |
| Nominal Widths | 1200, 1210 and 1350mm ± 3mm |
| Nominal Lengths | From 2400 to 4800 ± 5mm, typically in 600mm increments |
| Squareness | Cut ends ± 3mm in the width of the board |
Physical Properties
| Nominal Board Weight* | 10.4kg/m2 |
| Recycled Content | 11% |
| Thermal Performance: R-Value |
0.04 – 0.05 m2K/W |
| Fire Hazard: assessed to AS/NZS3837 cone calorimeter test | Average Specific Extinction Area (ASEA) <250m2/kg Group Number 1 Report Reference WFRA 45759 |
| Combustibility | In accordance with BCA Clause C1.12, Gyprock Superchek may be used wherever a non-combustible material is required by the Code. |
| Total Recycled Content | 34.0% |
*Subject to reasonable manufacturing varianc
Resources
Gyprock makes available resources that provide comprehensive selection, design, installation and maintenance guidance.
